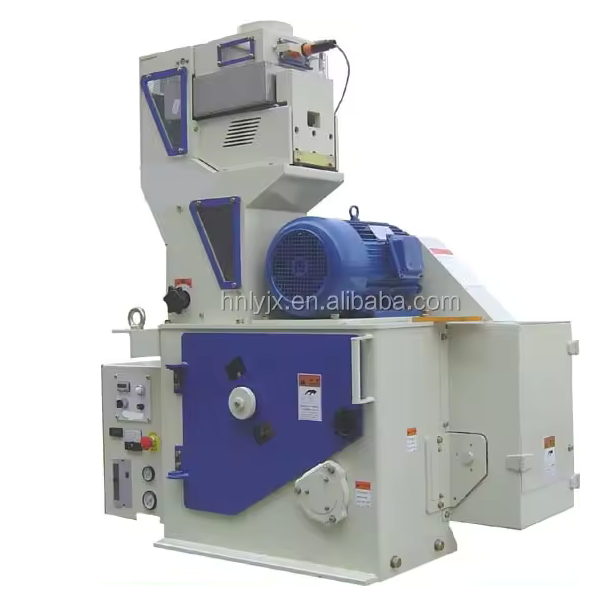

MLG Air Pressure Automatic Rubber Roller Rice Husking Machine uses novel fodder system, advanced timing belt and reliable shedding plate automatic trailing Rubber roller and gas-driven automatic elastic roller which make the rice roller techniques more high-efficiency and reliable. The yield per unit and technique witnesses obvious improvements.
Features:
1.The paddy husker machine adopts a new vibratory feeding system, stepless adjustment could be done to the vibration frequency according to actual production. Feeding looks like waterfall, big and uniform, backed up shedding plate auto
matic tracking rubber roll devices to ensure feeding accuracy, making operation of rubber roll optimal, thereby having high shelling rate and big capacity.
2.The application of bearing house construction parallel moving as a whole ensures the force borne by rubber roll uniform, running stable, high husking yield, therefore avoiding differing in roll end diameters, increasing rubber roll useful life and economic efficiency.
3.High automation, easy operation and simple. Automatically unengaged without paddy, while if with paddy, rubber rolls engage automatically. Opening for feeding gate and pressure between the rubber rolls are automatically controlled by pneumatic components.
4.Driven by synchronous dentiform between rubber rolls and newly gear-box which is easy operation, firm and durable, there is no slip, no speed drop, therefore having high efficiency, low noise and reliable technologic effect.
Main Technical Parameters
Model | MLG25-C | MLG36-C | MLG51-C |
Capacity(t/h) | 3.5~5 | 5~7 | 7~10 |
Grain content in hulls (grains in 100kg hulls) | ≤30 | ||
Air volume(m3/h) | 4000 | 4800 | 5600 |
Power(kW) | 7.5 | 7.5~11 | 11~15 |
Exterior size (L×W×H,mm) | 880×1280 ×2002 | 1210×1400 ×2200 | 1344×1400 ×2200 |
Packaging:all machines covered by plastic film firstly and then packed in wooden case to best protect the machine during long time transportation.
Shipping: All machines will be sent by sea, if you need other kind of transportation, please inform us in advance. And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.
