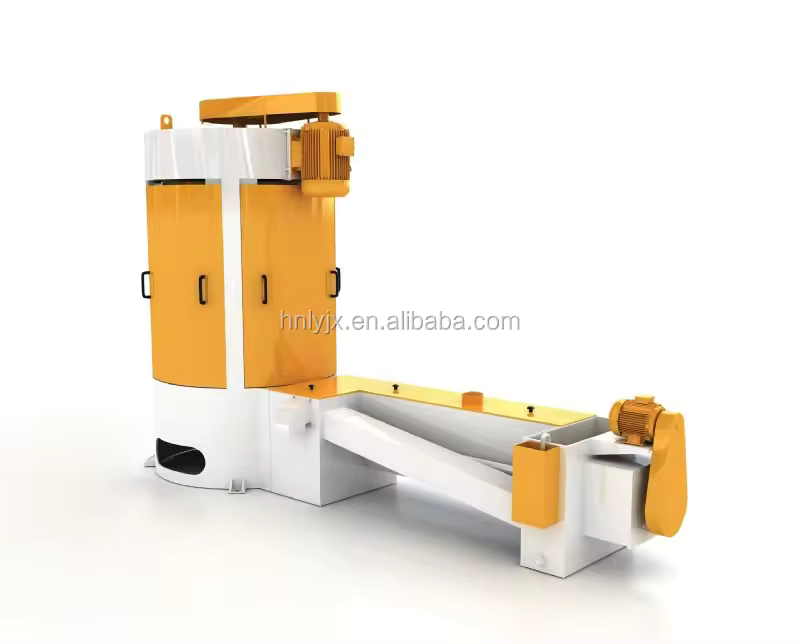

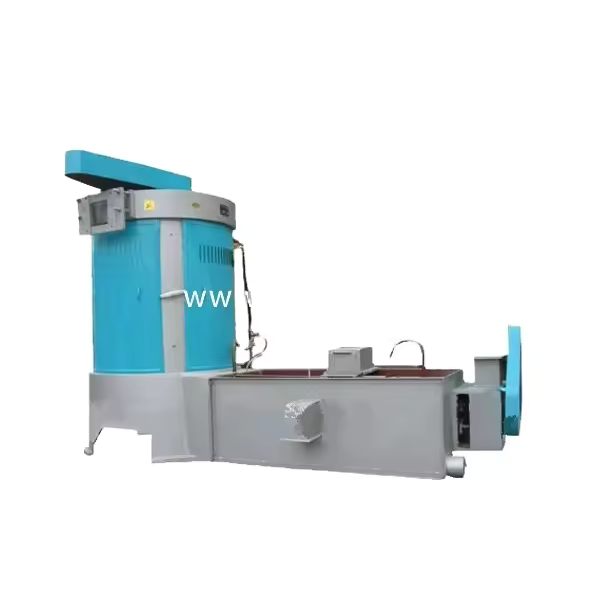

Brief introduction to the product

Wheat Washing Machine adopts wet method to clean wheat. It is applicable for flour milling machine to remove stones and sands in the wheat cleaning process. In the process, the wheat washing machine can remove the dust on the surface and in the the ventral groove of the wheat, as well as pesticide, microbes, ovums and pollutes. In the meanwhile, the wheat washing machine can increse the moisture of the wheat and change the physical property and grinding procedure in conjunction with wheat tempering.

Working Principle of Wheat Washing Machine

1. Seeds were feed into hopper auger. Due to the rotation of the auger, the wheat to be washed and suspended in water, then sent to the dryer box.

2. Stones and other impurities drop into the auger for their bigger gravity. By the opposite rotation of the auger, the sand fall in sand bucket under the water tank.

This machine utilizes water to wash the wheat, it may take away the sand or gemstones that is from the similar size because the wheat, clean from the ash at first glance of wheat, reduce pollution amounts of pesticide sprays and bacteria, is appropriate for big or medium -scale flour mills. The washer can function on corn, beans, sesame, etc.

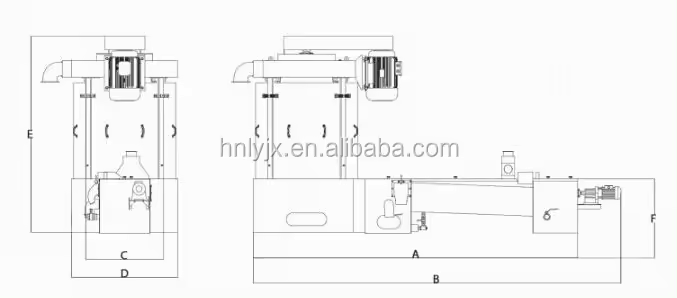

Specifications

Functions

After the coarse, fine and light impurities are all eliminated from the wheat, this machine should be applied to wash away clods, mixed stones, pesticides, bacteria, viruses and other contaminants which may adhere to the surface or body of wheat kernels.

At the same time, the washing process also slightly adds water content of the wheat, and the physical properties of wheat are changed accordingly. For example, the bran shows improved tenacity, and the grinding performance is enhanced. In addition, the moisture addition rate is usually within 2.5%-8%.

Features

1. Sturdy Construction

The water tank is manufactured by high-quality and corrosion-resistant marine steel plates.

2. Convenient Maintenance

For this wheat washer, the upper and lower bearing seats are designed with oil filling ports to facilitate lubrication operations for the bearing, so the maintenance is vey simple. Meanwhile, the cleaning door is set at the lower end of the machine, and it adopts wedge-shaped iron lever for clamping. Thus, blocking problem will be solved easily if it occurs.

3. Reasonable Design

With the help of an auto-washing device, the work site will be very clean, and the moisture addition level is extremely stable.

4. Low Noise

The rotor receives dynamic balance test to improve its working precision and reduce the noise level.

5. Low Maintenance Cost

The machine door, sieve plate, angle iron and corresponding fastening components are all made from stainless steel. So, the service cycle is extended by 3-5 times, thus greatly reducing the maintenance cost of this wheat washer.

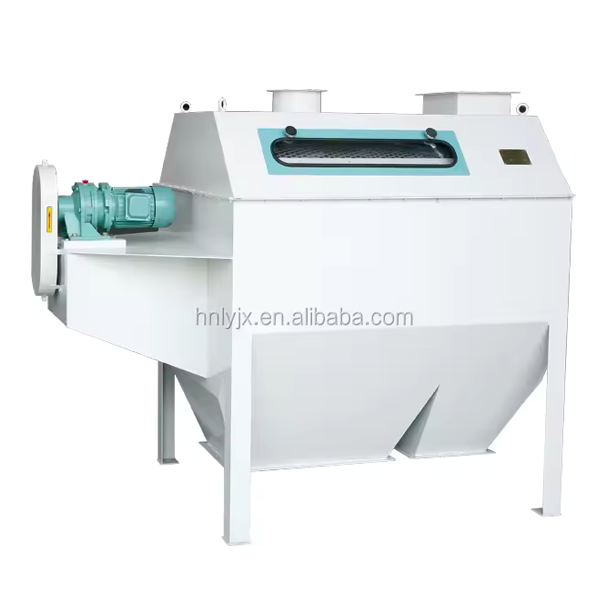

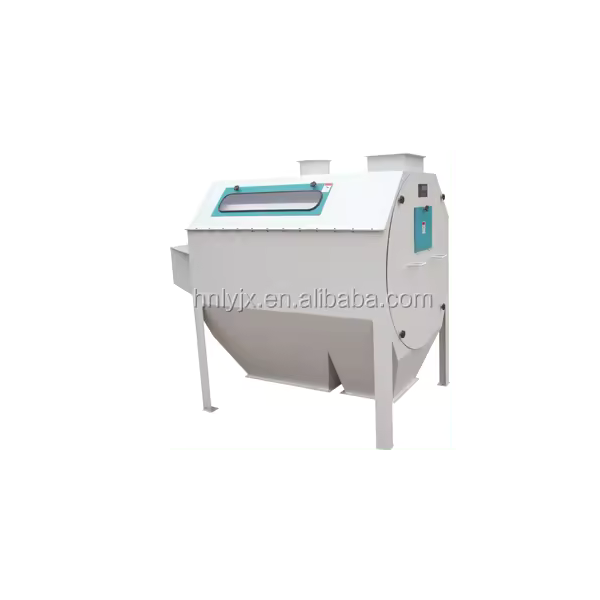

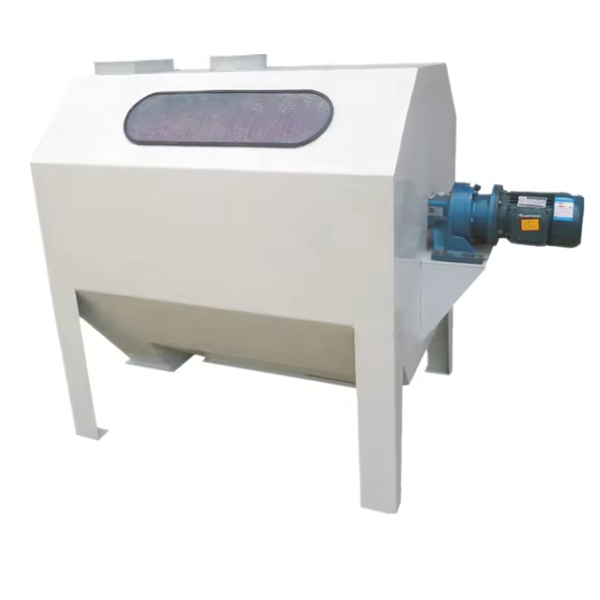

some other relative equipments
